New Tseng’s extragradient methods for pseudomonotone variational inequality problems in Hadamard manifolds

Abstract

We propose Tseng’s extragradient methods for finding a solution of variational inequality problems associated with pseudomonotone vector fields in Hadamard manifolds. Under standard assumptions such as pseudomonotone and Lipschitz continuous vector fields, we prove that any sequence generated by the proposed methods converges to a solution of variational inequality problem, whenever it exits. Moreover, we give some numerical experiments to illustrate our main results.

1 Introduction

The theory of variational inequality problems, which was firstly introduced by Stampacchia [1], has significant applications in numerous fields, for example, optimal control, boundary valued problems, network equilibrium problems, and so forth. It has been widely concentrated on finite- or infinite-dimensional linear spaces; see, for instance, [2–7] and the bibliography therein.

Let K be a nonempty, closed, and convex subset of a real Hilbert space H and $T : K \to H$ a single-valued operator. The variational inequality problem (VIP) is to find $x^{*} \in K$ such that

$$ \bigl\langle Tx^{*}, y-x^{*} \bigr\rangle \geq 0, \quad \forall y \in K. $$

(1)

Many researches have been proposed and analyzed iterative algorithms for approximating the solution of variational inequality problem (1), such as the simplest projection method [4, 8], the extragradient method [9], and the subgradient extragradient method [10–12].

One popular method is the well-known Tseng’s extragradient method presented by Tseng [13]. The algorithm is described as follows:

$$ \textstyle\begin{cases} y_{n} = \pi _{K}(x_{n} - \mu Tx_{n}), \\ x_{n+1} = y_{n} - \mu (Ty_{n} - Tx_{n}), \quad \forall n \geq 1. \end{cases} $$

The weak convergence of this method was established in [13] under the additional assumption that T is monotone Lipschitz continuous, and further studied in [14] for the case when T is pseudomonotone Lipschitz continuous. Recently, Tseng’s extragradient method has been studied by many authors; see, for instance, [6, 7, 15–18] and the references therein.

Recently, several nonlinear issues appeared in fixed point, variational inclusion, equilibrium, and optimization problems trying to adapt the theory from linear spaces to nonlinear systems because certain problems cannot be posed in a linear space and require a manifold structure. The extension of the concept, techniques, as well as methods from linear spaces to Riemannian manifolds has some significant advantages. For example, some constrained optimization problems can be viewed as unconstrained ones from the Riemannian geometry perspective, another advantage is that some optimization problems with nonconvex objective functions become convex through the introduction of an appropriate Riemannian metric. The investigation of extensions and development of nonlinear problem techniques has got a lot of consideration. Therefore, many authors have focused on the Riemannian framework; see, for example, [19–28] and the references therein.

Let M be an Hadamard manifold, TM the tangent bundle of M, K a nonempty, closed, geodesic convex subset of M and exp an exponential mapping. In 2003, Németh [22] introduced the variational inequality problem on an Hadamard manifold which is to find $x^{*} \in K$ such that

$$ \bigl\langle Tx^{*}, \exp ^{-1}_{x^{*}}y \bigr\rangle \geq 0, \quad \forall y \in K, $$

(2)

where $T : K \to TM$ is a single-valued vector field. The author generalized some basic existence and uniqueness theorems of the classical theory of variational inequality problems from Euclidean spaces to Hadamard manifolds. We use $VIP(T,K)$ to denote the set of solutions of the variational inequality problem (2). Inspired by [22], many authors further studied this problem in Riemannian manifolds. See, for instance, Li et al. [29] who studied the variational inequality problems on general Riemannian manifolds. Tang et al. [30] introduced the proximal point method for variational inequalities with pseudomonotone vector fields. Ferreira et al. [31] suggested an extragradient-type algorithm for solving variational inequality problem (2) on Hadamard manifolds. The Korpelevich’s method to solve variational inequality problems was presented by Tang and Huang [32]. Tang et al. [33] extended a projection-type method for variational inequalities from Euclidean spaces to Hadamard manifolds. In 2019, Junfeng et al. [23] purposed two Tseng’s extragradient methods to solve variational inequality problem (2) in Hadamard manifolds. Under the assumption that T is pseudomonotone Lipschitz continuous, the authors proved that a sequences generated by the proposed methods converge to solutions of variational inequality problems on Hadamard manifolds. The step sizes in the first algorithm are obtained by using a line search, and in the second they are found just by using two previous iterates, so it is unnecessary to know the Lipschitz constants.

Motivated by the above results, in this article we purpose three effective Tseng’s extragradient methods for solving variational inequality (2) on Hadamard manifolds. The step sizes in the first algorithm depend on the Lipschitz constant, for the second we obtain them by using a line search, and for the last one only we get them by using two previous iterates. For the last two algorithms, the Lipschitz constant need not be known. Under appropriate assumptions, we prove that any sequence generated by the proposed methods converges to a solution of variational inequality (2).

The rest of the paper is as follows: In Sect. 2, we present some vital ideas of geometry and nonlinear examination in Riemannian manifolds which can be discovered in any standard book on manifolds, such as [34–37], and will be needed in the sequel. In Sect. 3, our three algorithms based on Tseng’s extragradient method for variational inequality are presented, and we analyze their convergence on Hadamard manifolds. In Sect. 4, we provide numerical examples to show the efficiency of the proposed algorithms. In Sect. 5, we give remarks and conclusions.

2 Preliminaries

Let M be a connected finite-dimensional manifold. For $p \in M$, let $T_{p}M$ be the tangent space of M at p, which is a vector space of the same dimension as M. The tangent bundle of M is denoted by $TM = \bigcup_{p \in M}T_{p}M$. A smooth mapping $\langle \cdot , \cdot \rangle : TM \times TM \to \mathbb{R}$ is said to be a Riemannian metric on M if $\langle \cdot , \cdot \rangle _{p} : T_{p}M \times T_{p}M \to \mathbb{R}$ is an inner product for all $x \in M$. We denote by $\Vert \cdot \Vert _{p}$ the norm corresponding to the inner product $\langle \cdot , \cdot \rangle _{p}$ on $T_{p}M$. If there is no confusion, we omit the subscript p. A differentiable manifold M endowed with a Riemannian metric $\langle \cdot , \cdot \rangle$ is said to be a Riemannian manifold.

The length of a piecewise smooth curve $\omega : [a,b] \to M$ joining $\omega (a) = p$ to $\omega (b) = q$, through $L(\omega ) = \int _{a}^{b} \Vert \omega {'}(t)\Vert \,dt$, where $\omega {'}(t)$ is the tangent vector at $\omega (t)$ in the tangent space $T_{\omega (t)}M$. Minimizing this length functional over the set of all such curves, we obtain a Riemannian distance $d(p,q)$ which induces the original topology on M.

Let ∇ be a Levi-Civita connection associated with the Riemannian manifold M. Given a smooth curve ω, a smooth vector field X along ω is said to be parallel if $\nabla _{\omega {'}}X ={\mathbf{0}}$ where 0 denotes the zero section of TM. If $\omega {'}$ itself is parallel, we say that ω is a geodesic, and in this case $\Vert \omega {'}\Vert$ is a constant. When $\Vert \omega {'}\Vert = 1$, ω is said to be normalized. A geodesic joining p to q in M is said to be a minimizing geodesic if its length equals to $d(p,q)$.

The parallel transport ${\mathrm{P}}_{{\omega },{\omega (b)},{\omega (a)}}: T_{\omega (a)}M \to T_{ \omega (b)}M$ on the tangent bundle TM along $\omega : [a,b] \to \mathbb{R}$ with respect to ∇ is defined by

$$ {\mathrm{P}}_{{\omega },{\omega (b)},{\omega (a)}}(v) = V \bigl(\omega (b) \bigr), \quad \forall a,b \in \mathbb{R} \text{ and } v \in T_{\omega (a)}M, $$

where V is the unique vector field such that $\nabla _{\omega {'}(t)}V = {\mathbf{0}}$ for all $t \in [a,b]$ and $V(\omega (a)) = v$. If ω is a minimizing geodesic joining p to q, then we write ${\mathrm{P}}_{q,p}$ instead of ${\mathrm{P}}_{\omega ,q,p}$. Note that, for every $a,b,b_{1},b_{2} \in \mathbb{R}$, we have

$$ {\mathrm{P}}_{\omega (b_{2}),\omega (b_{1})} \circ {\mathrm{P}}_{\omega (b_{1}), \omega (a)} = { \mathrm{P}}_{\omega (b_{2}),\omega (a)} \quad \text{and} \quad {\mathrm{P}}^{-1}_{ \omega (b),\omega (a)} = {\mathrm{P}}_{\omega (a),\omega (b)}. $$

Also ${\mathrm{P}}_{\omega (b),\omega (a)}$ is an isometry from $T_{\omega (a)}M$ to $T_{\omega (b)}M$, that is, the parallel transport preserves the inner product

$$ \bigl\langle {\mathrm{P}}_{\omega (b),\omega (a)}(u), { \mathrm{P}}_{\omega (b), \omega (a)}(v) \bigr\rangle _{\omega (b)} = \langle u,v\rangle _{\omega (a)}, \quad \forall u,v \in T_{\omega (a)}M. $$

(3)

A Riemannian manifold M is said to be complete if for all $p \in M$, all geodesics emanating starting from p are defined for all $t \in \mathbb{R}$. Hopf–Rinow theorem asserts that if M is complete then any pair of points in M can be joined by a minimizing geodesic. Moreover, $(M,d)$ is a complete metric space, every bounded closed subset is compact. If M is a complete Riemannian manifold, then the exponential map $\exp _{p} : T_{p}M \to M$ at $p \in M$ is defined by

$$ \exp _{p}\nu =\omega _{\nu }(1,p), \quad \forall \nu \in T_{p}M, $$

where $\omega _{\nu }(\cdot ,p)$ is the geodesic starting from p with velocity ν (i.e., $\omega _{\nu }(0,p) = p$ and $\omega {'}_{\nu }(0,p) = \nu$). Then, for any value of t, we have $\exp _{p}t\nu =\omega _{\nu }(t,p)$ and $\exp _{p}{\mathbf{0}} =\omega _{\nu }(0,p) =p$. Note that the mapping $\exp _{p}$ is differentiable on $T_{p}M$ for every $p \in M$. The exponential map has inverse $\exp ^{-1}_{p} : M \to T_{p}M$. Moreover, for any $p,q \in M$, we have $d(p,q) = \Vert \exp _{p}^{-1}q\Vert$.

A complete simply connected Riemannian manifold of nonpositive sectional curvature is said to be an Hadamard manifold. In the remaining part of this paper, M will denote a finite-dimensional Hadamard manifold.

The following proposition is outstanding and will be helpful.

Proposition 1

([34])

Let $p \in M$. The exponential mapping $\exp _{p} : T_{p}M \to M$ is a diffeomorphism, and for any two points $p,q \in M$ there exists a unique normalized geodesic joining p to q, which is can be expressed by the formula

$$ \omega (t) = \exp _{p} t \exp _{p}^{-1}q, \quad \forall t \in [0,1]. $$

A geodesic triangle $\triangle (p_{1},p_{2},p_{3})$ of a Riemannian manifold M is a set consisting of three points $p_{1}$, $p_{2}$, and $p_{3}$, and three minimizing geodesics joining these points.

Proposition 2

([34])

Let $\triangle (p_{1},p_{2},p_{3})$ be a geodesic triangle in M. Then

$$ d^{2}(p_{1},p_{2}) + d^{2}(p_{2},p_{3}) - 2 \bigl\langle \exp ^{-1}_{p_{2}}p_{1} , \exp ^{-1}_{p_{2}}p_{3} \bigr\rangle \leq d^{2}(p_{3},p_{1}), $$

(4)

and

$$ d^{2}(p_{1},p_{2}) \leq \bigl\langle \exp ^{-1}_{p_{1}}p_{3}, \exp ^{-1}_{p_{1}}p_{2} \bigr\rangle + \bigl\langle \exp ^{-1}_{p_{2}}p_{3}, \exp ^{-1}_{p_{2}}p_{1} \bigr\rangle . $$

(5)

Moreover, if α is the angle at $p_{1}$, then we have

$$ \bigl\langle \exp ^{-1}_{p_{1}}p_{2}, \exp ^{-1}_{p_{1}}p_{3} \bigr\rangle = d(p_{2},p_{1})d(p_{1},p_{3}) \cos \alpha . $$

The following relation between geodesic triangles in Riemannian manifolds and triangles in $\mathbb{R}^{2}$ can be found in [37].

Lemma 1

([37])

Let $\triangle (p_{1},p_{2},p_{3})$ be a geodesic triangle in M. Then, there exists a triangle $\triangle (\overline{p_{1}}, \overline{p_{2}}, \overline{p_{3}})$ for $\triangle (p_{1},p_{2},p_{3})$ such that $d(p_{i},p_{i+1}) = \Vert \overline{p_{i}} - \overline{p_{i+1}}\Vert$, with the indices taken modulo 3; it is unique up to an isometry of $\mathbb{R}^{2}$.

The triangle $\triangle (\overline{p_{1}}, \overline{p_{2}}, \overline{p_{3}})$ in Lemma 1 is said to be a comparison triangle for $\triangle (p_{1},p_{2},p_{3})$. The points $\overline{p_{1}}$, $\overline{p_{2}}$, $\overline{p_{3}}$ are called comparison points to the points $p_{1}$, $p_{2}$, $p_{3}$, respectively.

Lemma 2

Let $\triangle (p_{1},p_{2},p_{3})$ be a geodesic triangle in M and $\triangle (\overline{p_{1}}, \overline{p_{2}}, \overline{p_{3}})$ be its comparison triangle.

• (i) Let $\alpha _{1}$, $\alpha _{2}$, $\alpha _{3}$ (respectively, $\overline{\alpha _{1}}$, $\overline{\alpha _{2}}$, $\overline{\alpha _{3}}$) be the angles of $\triangle (p_{1},p_{2},p_{3})$ (respectively, $\triangle (\overline{p_{1}}, \overline{p_{2}}, \overline{p_{3}})$) at the vertices $p_{1}$, $p_{2}$, $p_{3}$ (respectively, $\overline{p_{1}}$, $\overline{p_{2}}$, $\overline{p_{3}}$). Then

  $$ \alpha _{1} \leq \overline{\alpha _{1}}, \quad \quad \alpha _{2} \leq \overline{\alpha _{2}}, \quad \textit{and} \quad \alpha _{3} \leq \overline{\alpha _{3}}. $$

• (ii) Let q be a point on the geodesic joining $p_{1}$ to $p_{2}$ and q̅ its comparison point in the interval $[\overline{p_{1}}, \overline{p_{2}}]$. If $d(p_{1},q) = \Vert \overline{p_{1}} -\overline{q} \Vert$ and $d(p_{2},q) = \Vert \overline{p_{2}} - \overline{q} \Vert$, then $d(p_{3},q) \leq \Vert \overline{p_{3}} - \overline{q}\Vert$.

Definition 1

A subset K in an Hadamard manifold M is called geodesic convex if for all p and q in K, and for any geodesic $\omega : [a,b] \to M$, $a,b \in \mathbb{R}$ such that $p =\omega (a)$ and $q =\omega (b)$, one has $\omega ((1-t)a + tb) \in K$, for all $t \in [0,1]$.

Definition 2

A function $f: M \to \mathbb{R}$ is called geodesic convex if for any geodesic ω in M, the composition function $f \circ \omega : [a,b] \to \mathbb{R}$ is convex, that is,

$$ (f\circ \omega ) \bigl(ta + (1-t)b \bigr) \leq t(f \circ \omega ) (a) + (1-t) (f \circ \omega ) (b), \quad a,b \in \mathbb{R}\text{, and } \forall t \in [0,1] . $$

The following remarks and lemma will be helpful in the sequel.

Remark 1

([25])

If $x,y \in M$ and $v \in T_{x}M$, then

$$ \bigl\langle v, - \exp ^{-1}_{x}y \bigr\rangle = \bigl\langle v , { \mathrm{P}}_{x,y} \exp ^{-1}_{y}x \bigr\rangle = \bigl\langle {\mathrm{P}}_{y,x} v , \exp ^{-1}_{y}x \bigr\rangle . $$

(6)

Remark 2

([23])

Let $x,y,z \in M$ and $v \in T_{x}M$. By using (5) and Remark 1,

$$ \bigl\langle v, \exp ^{-1}_{x}y \bigr\rangle \leq \bigl\langle v, \exp ^{-1}_{x}z \bigr\rangle + \bigl\langle v, {\mathrm{P}}_{x,z}\exp ^{-1}_{z}y \bigr\rangle . $$

(7)

Lemma 3

([25])

Let $x_{0} \in M$ and $\{x_{n}\} \subset M$ with $x_{n} \to x_{0}$. Then the following assertions hold:

• (i) For any $y \in M$, we have $\exp ^{-1}_{x_{n}}y \to \exp ^{-1}_{x_{0}}y$ and $\exp ^{-1}_{y}x_{n} \to \exp ^{-1}_{y}x_{0}$;

• (ii) If $v_{n} \in T_{x_{n}}M$ and $v_{n} \to v_{0}$, then $v_{0} \in T_{x_{0}}M$;

• (iii) Let $u_{n}, v_{n} \in T_{x_{n}}M$ and $u_{0}, v_{0} \in T_{x_{0}}M$, if $u_{n} \to u_{0}$ and $v_{n} \to v_{0}$, then $\langle u_{n}, v_{n}\rangle \to \langle u_{0},v_{0}\rangle$;

• (iv) For every $u \in T_{x_{0}}M$, the function $V: M \to TM$, defined by $V(x) = {\mathrm{P}}_{x,x_{0}}u$ for all $x \in M$, is continuous on M.

Next, we present some concept of monotonicity and Lipschitz continuity of a single-valued vector field. Let K be a nonempty subset of M and $\mathcal{X}(K)$ denote the set of all single-valued vector fields $T : K \to TM$ such that $Tx \in T_{x}M$, for each $x \in K$.

Definition 3

([26, 32])

A vector field $T \in \mathcal{X}(K)$ is called

• (i) monotone if

  $$ \bigl\langle Tx, \exp ^{-1}_{x}y \bigr\rangle + \bigl\langle Ty, \exp ^{-1}_{y}x \bigr\rangle \leq 0, \quad \forall x,y \in K; $$

• (ii) pseudomonotone if

  $$ \bigl\langle Tx, \exp ^{-1}_{x}y \bigr\rangle \geq 0 \quad \Rightarrow \quad \bigl\langle Ty, \exp ^{-1}_{y}x \bigr\rangle \leq 0, \quad \forall x,y \in K; $$

• (iii) Γ-Lipschitz continuous if there is $\Gamma > 0$ such that

  $$ \Vert {\mathrm{P}}_{x,y}Ty-Tx \Vert \leq \Gamma d(x,y), \quad \forall x,y \in K. $$

Let us end this section with the following results which are essential in establishing our main convergence theorems.

Definition 4

([19])

Let K be a nonempty subset of M and $\{x_{n}\}$ be a sequence in M. Then $\{x_{n}\}$ is said to be Fejér monotone with respect to K if for all $p \in K$ and $n \in \mathbb{N}$,

$$ d(x_{n+1},p) \leq d(x_{n},p). $$

Lemma 4

([19])

Let K be a nonempty subset of M and $\{x_{n}\} \subset M$ be a sequence in M such that $\{x_{n}\}$ is Fejér monotone with respect to K. Then the following hold:

• (i) For every $p \in K$, $d(x_{n},p)$ converges;

• (ii) $\{x_{n}\}$ is bounded;

• (iii) Assume that every cluster point of $\{x_{n}\}$ belongs to K, then $\{x_{n}\}$ converges to a point in K.

3 Main results

In this section, we discuss three algorithms for solving pseudomonotone variational problems. Throughout the remainder of this paper, unless explicitly stated otherwise, K always denotes a nonempty, closed, geodesic convex subset of an Hadamard manifold M. Consider a vector field $T \in \mathcal{X}(K)$. In order to solve the variational inequality problem (2), we consider the following assumptions:

• (H1) $VIP(T,K)$ is nonempty.

• (H2) The vector field $T \in \mathcal{X}(K)$ is pseudomonotone and Γ-Lipschitz continuous.

First, we introduced a Tseng’s extragradient method for the variational inequality (2) on Hadamard manifolds. The step sizes in this algorithm are obtained employing the Lipschitz constant. The algorithm is described as Algorithm 1.

Algorithm 1

Tseng’s extragradient method

The following remark gives us a stopping criterion.

Remark 3

If $x_{n} = y_{n}$, then $x_{n}$ is a solution. In view of (8), we get

$$\begin{aligned} 0 \leq & \biggl\langle {\mathrm{P}}_{y_{n},x_{n}} Tx_{n} - \frac{1}{\mu _{n}} \exp ^{-1}_{y_{n}}x_{n}, \exp ^{-1}_{y_{n}}y \biggr\rangle \\ =& \bigl\langle Tx_{n} , \exp ^{-1}_{x_{n}}y \bigr\rangle , \quad \forall y \in K, \end{aligned}$$

then $x_{n} \in VIP(T,K)$.

To prove the convergence of Algorithm 1, we need the following lemma.

Lemma 5

Suppose that assumptions (H1)–(H2) hold. Let $\{x_{n}\}$ be a sequence generated by Algorithm 1. Then

$$ d^{2}(x_{n+1},x) \leq d^{2}(x_{n},x) - \bigl(1-\Gamma ^{2} \mu _{n}^{2} \bigr)d^{2}(x_{n},y_{n}), \quad \forall x \in VIP(T,K). $$

(8)

Proof

Let $x \in VIP(T,K)$, then from (8), we obtain

$$ \biggl\langle {\mathrm{P}}_{y_{n},x_{n}} Tx_{n} - \frac{1}{\mu _{n}} \exp ^{-1}_{y_{n}}x_{n}, \exp ^{-1}_{y_{n}}x \biggr\rangle \geq 0, $$

that is,

$$ \bigl\langle \exp ^{-1}_{y_{n}}x_{n}, \exp ^{-1}_{y_{n}}x \bigr\rangle \leq \mu _{n} \bigl\langle {\mathrm{P}}_{y_{n},x_{n}} Tx_{n} , \exp ^{-1}_{y_{n}}x \bigr\rangle . $$

(9)

As $x \in VIP(T,K)$, this implies $\langle Tx,\exp ^{-1}_{x}y_{n}\rangle \geq 0$. Since T is pseudomonotone, then we get $\langle Ty_{n},\exp ^{-1}_{y_{n}}x\rangle \leq 0$. Now,

$$\begin{aligned} \bigl\langle Ty_{n} - {\mathrm{P}}_{y_{n},x_{n}}Tx_{n}, \exp ^{-1}_{y_{n}}x \bigr\rangle =& \bigl\langle Ty_{n} , \exp ^{-1}_{y_{n}}x \bigr\rangle - \bigl\langle { \mathrm{P}}_{y_{n},x_{n}}Tx_{n}, \exp ^{-1}_{y_{n}}x \bigr\rangle \\ \leq & - \bigl\langle {\mathrm{P}}_{y_{n},x_{n}}Tx_{n}, \exp ^{-1}_{y_{n}}x \bigr\rangle . \end{aligned}$$

(10)

Fix $n \in \mathbb{N}$. Let $\triangle (y_{n},x_{n},x) \subseteq M$ be a geodesic triangle with vertices $y_{n}$, $x_{n}$, and x, and $\triangle (\overline{y_{n}},\overline{x_{n}},\overline{x}) \subseteq \mathbb{R}^{2}$ be the corresponding comparison triangle. Then, we have

$$ d(y_{n},x) = \Vert \overline{y_{n}} - \overline{x} \Vert , \quad \quad d(x_{n},x) = \Vert \overline{x_{n}} - \overline{x} \Vert , \quad {\textrm{and}} \quad d(y_{n},x_{n}) = \Vert \overline{y_{n}} - \overline{x_{n}} \Vert . $$

Again, letting $\triangle (x_{n+1},y_{n},x) \subseteq M$ be a geodesic triangle with vertices $x_{n+1}$, $y_{n}$, and x, and $\triangle (\overline{x_{n+1}},\overline{y_{n}},\overline{x}) \subseteq \mathbb{R}^{2}$ be the corresponding comparison triangle, one obtains

$$ d(x_{n+1},x) = \Vert \overline{x_{n+1}} - \overline{x} \Vert , \quad \quad d(y_{n},x) = \Vert \overline{y_{n}} - \overline{x} \Vert , \quad \text{and} \quad d(x_{n+1},y_{n}) = \Vert \overline{x_{n+1}} - \overline{y_{n}} \Vert . $$

Now,

$$\begin{aligned} d^{2}(x_{n+1},x) =& \Vert \overline{x_{n+1}} - \overline{x} \Vert ^{2} \\ =& \bigl\Vert (\overline{x_{n+1}} - \overline{y_{n}}) + ( \overline{y_{n}} - \overline{x}) \bigr\Vert ^{2} \\ =& \Vert \overline{y_{n}} - \overline{x} \Vert ^{2} + \Vert \overline{x_{n+1}} - \overline{y_{n}} \Vert ^{2} + 2 \langle \overline{x_{n+1}} - \overline{y_{n}} , \overline{y_{n}} - \overline{x} \rangle \\ =& \bigl\Vert (\overline{y_{n}} - \overline{x_{n}}) + ( \overline{x_{n}} - \overline{x}) \bigr\Vert ^{2} + \Vert \overline{x_{n+1}} - \overline{y_{n}} \Vert ^{2} + 2 \langle \overline{x_{n+1}} - \overline{y_{n}} , \overline{y_{n}} - \overline{x} \rangle \\ =& \Vert \overline{y_{n}} - \overline{x_{n}} \Vert ^{2} + \Vert \overline{x_{n}} - \overline{x} \Vert ^{2} + 2 \langle \overline{y_{n}} - \overline{x_{n}}, \overline{x_{n}} - \overline{x} \rangle + \Vert \overline{x_{n+1}} - \overline{y_{n}} \Vert ^{2} \\ & {} + 2 \langle \overline{x_{n+1}} - \overline{y_{n}} , \overline{y_{n}} - \overline{x} \rangle \\ =& \Vert \overline{y_{n}} - \overline{x_{n}} \Vert ^{2} + \Vert \overline{x_{n}} - \overline{x} \Vert ^{2} - 2 \langle \overline{y_{n}} - \overline{x_{n}}, \overline{y_{n}} - \overline{x_{n}} \rangle + 2 \langle \overline{y_{n}} - \overline{x_{n}}, \overline{y_{n}} - \overline{x} \rangle \\ & {} + \Vert \overline{x_{n+1}} - \overline{y_{n}} \Vert ^{2} + 2 \langle \overline{x_{n+1}} - \overline{y_{n}} , \overline{y_{n}} - \overline{x} \rangle +2 \Vert \overline{y_{n}} - \overline{x} \Vert ^{2} -2 \Vert \overline{y_{n}} - \overline{x} \Vert ^{2} \\ =& \Vert \overline{x_{n}} - \overline{x} \Vert ^{2} - \Vert \overline{y_{n}} - \overline{x_{n}} \Vert ^{2} + \Vert \overline{x_{n+1}} - \overline{y_{n}} \Vert ^{2} + 2 \langle \overline{x_{n}} - \overline{y_{n}}, \overline{x} - \overline{y_{n}} \rangle \\ & {} + 2 \langle \overline{x_{n+1}} - \overline{y_{n}} , \overline{y_{n}} - \overline{x} \rangle + 2 \langle \overline{y_{n}} - \overline{x} , \overline{y_{n}} - \overline{x} \rangle -2 \Vert \overline{y_{n}} - \overline{x} \Vert ^{2} \\ =& d^{2}(x_{n},x) - d^{2}(y_{n},x_{n}) + \Vert \overline{x_{n+1}} - \overline{y_{n}} \Vert ^{2} + 2 \langle \overline{x_{n}} - \overline{y_{n}}, \overline{x} - \overline{y_{n}} \rangle \\ & {} + 2 \langle \overline{x_{n+1}} - \overline{x}, \overline{y_{n}} - \overline{x} \rangle - 2d^{2}(y_{n},x) . \end{aligned}$$

(11)

If α, α̅ are the angles at the vertices $y_{n}$ $\overline{y_{n}}$, in view of Lemma 2, we get $\alpha \leq \overline{\alpha }$. In addition, by Proposition 2, we have

$$\begin{aligned} \langle \overline{x_{n}} - \overline{y_{n}}, \overline{x} - \overline{y_{n}}\rangle =& \Vert \overline{x_{n}} - \overline{y_{n}} \Vert \Vert \overline{x} - \overline{y_{n}} \Vert \cos \overline{\alpha } \\ =& d(x_{n},y_{n})d(y_{n},x)\cos \overline{ \alpha } \\ \leq & d(x_{n},y_{n})d(y_{n},x)\cos \alpha \\ =& \bigl\langle \exp _{y_{n}}^{-1}x_{n}, \exp ^{-1}_{y_{n}}x \bigr\rangle . \end{aligned}$$

(12)

Repeating the same argument as above yields

$$ \langle \overline{x_{n+1}} - \overline{x}, \overline{y_{n}} - \overline{x}\rangle \leq \bigl\langle \exp _{x}^{-1}x_{n+1}, \exp ^{-1}_{x}y_{n} \bigr\rangle $$

(13)

and

$$\begin{aligned} \Vert \overline{x_{n+1}} - \overline{y_{n}} \Vert ^{2} =& \langle \overline{x_{n+1}} - \overline{y_{n}} , \overline{x_{n+1}} - \overline{y_{n}} \rangle \\ \leq & \bigl\langle \exp ^{-1}_{y_{n}}x_{n+1} ,\exp ^{-1}_{y_{n}}x_{n+1} \bigr\rangle \\ =& \bigl\Vert \exp ^{-1}_{y_{n}}x_{n+1} \bigr\Vert ^{2} \\ =& \mu _{n}^{2} \Vert {\mathrm{P}}_{y_{n},x_{n}}Tx_{n} - Ty_{n} \Vert ^{2}. \end{aligned}$$

(14)

Substituting (14), (15), and (16) into (13), we get

$$\begin{aligned} d^{2}(x_{n+1},x) \leq & d^{2}(x_{n},x) - d^{2}(y_{n},x_{n}) + \mu _{n}^{2} \Vert {\mathrm{P}}_{y_{n},x_{n}}Tx_{n} - Ty_{n} \Vert ^{2} \\ & {} +2 \bigl\langle \exp _{y_{n}}^{-1}x_{n}, \exp ^{-1}_{y_{n}}x \bigr\rangle + 2 \bigl\langle \exp _{x}^{-1}x_{n+1}, \exp ^{-1}_{x}y_{n} \bigr\rangle -2d^{2}(y_{n},x). \end{aligned}$$

It follows from Remark 2 that the last inequality becomes

$$\begin{aligned} d^{2}(x_{n+1},x) \leq & d^{2}(x_{n},x) - d^{2}(y_{n},x_{n}) + \mu _{n}^{2} \Vert {\mathrm{P}}_{y_{n},x_{n}}Tx_{n} - Ty_{n} \Vert ^{2}\\ & {} +2 \bigl\langle \exp _{y_{n}}^{-1}x_{n}, \exp ^{-1}_{y_{n}}x \bigr\rangle + 2 \bigl\langle \exp _{x}^{-1}y_{n}, \exp ^{-1}_{x}y_{n} \bigr\rangle \\ & {} + 2 \bigl\langle {\mathrm{P}}_{x,y_{n}} \exp _{y_{n}}^{-1}x_{n+1}, \exp ^{-1}_{x}y_{n} \bigr\rangle -2d^{2}(y_{n},x) \\ =& d^{2}(x_{n},x) - d^{2}(y_{n},x_{n}) + \mu _{n}^{2} \Vert {\mathrm{P}}_{y_{n},x_{n}}Tx_{n} - Ty_{n} \Vert ^{2} \\ & {} +2 \bigl\langle \exp _{y_{n}}^{-1}x_{n}, \exp ^{-1}_{y_{n}}x \bigr\rangle - 2 \bigl\langle \exp _{y_{n}}^{-1}x_{n+1}, \exp ^{-1}_{y_{n}}x \bigr\rangle . \end{aligned}$$

From the definition of $x_{n+1} = \exp _{y_{n}}\mu _{n} ({\mathrm{P}}_{y_{n},x_{n}}Tx_{n} - Ty_{n})$, we get $\exp _{y_{n}}^{-1}x_{n+1} = \mu _{n} ({\mathrm{P}}_{y_{n},x_{n}}Tx_{n} - Ty_{n})$. From the above inequality, we obtain

$$\begin{aligned} d^{2}(x_{n+1},x) \leq & d^{2}(x_{n},x) - d^{2}(y_{n},x_{n}) + \mu _{n}^{2} \Vert {\mathrm{P}}_{y_{n},x_{n}}Tx_{n} - Ty_{n} \Vert ^{2} \\ & {} +2 \bigl\langle \exp _{y_{n}}^{-1}x_{n}, \exp ^{-1}_{y_{n}}x \bigr\rangle + 2\mu _{n} \bigl\langle Ty_{n} - {\mathrm{P}}_{y_{n},x_{n}}Tx_{n} , \exp ^{-1}_{y_{n}}x \bigr\rangle . \end{aligned}$$

(15)

Substituting (11) and (12) into (17) and using the fact that T is Γ-Lipschitz continuous, we deduce that

$$\begin{aligned} d^{2}(x_{n+1},x) \leq & d^{2}(x_{n},x) - d^{2}(y_{n},x_{n}) + \Gamma ^{2} \mu _{n}^{2} d(x_{n},y_{n}) \\ & {} + 2 \mu _{n} \bigl\langle {\mathrm{P}}_{y_{n},x_{n}}Tx_{n} , \exp ^{-1}_{y_{n}}x \bigr\rangle - 2 \mu _{n} \bigl\langle {\mathrm{P}}_{y_{n},x_{n}}Tx_{n}, \exp ^{-1}_{y_{n}}x \bigr\rangle . \end{aligned}$$

Thus,

$$ d^{2}(x_{n+1},x) \leq d^{2}(x_{n},x) - \bigl(1 - \Gamma ^{2} \mu _{n}^{2} \bigr) d^{2}(x_{n},y_{n}), \quad \forall x \in VIP(T,K). $$

Therefore, the proof is completed. □

In the light of the above lemma, we have the following result on the convergence of Algorithm 1.

Theorem 1

Suppose that assumptions (H1)–(H2) hold. Then the sequence $\{x_{n}\}$ generated by Algorithm 1 converges to a solution of the variational inequality problem (2).

Proof

Since $0 < \mu {'} \leq \mu _{n} \leq \mu {''} < \frac{1}{\Gamma }$, we deduce that $0 < \Gamma \mu _{n} < 1$. This implies that $0 < 1 - \Gamma ^{2} \mu _{n}^{2} < 1$. Let $x^{*} \in VIP(T,K)$. In view of (10), we obtain

$$\begin{aligned} d^{2} \bigl(x_{n+1},x^{*} \bigr) \leq & d^{2} \bigl(x_{n},x^{*} \bigr) - \bigl(1-\Gamma ^{2} \mu _{n}^{2} \bigr)d^{2}(x_{n},y_{n}) \\ \leq & d^{2} \bigl(x_{n},x^{*} \bigr). \end{aligned}$$

(16)

Therefore, $\{x_{n}\}$ is Fejér monotone with respect to $VIP(T,K)$.

Next, we show that $\lim_{n \to \infty }d(x_{n},y_{n}) = 0$. By rearranging (18), and using $\mu _{n} \in [\mu {'}, \mu {''} ]$, we have

$$\begin{aligned} d^{2}(x_{n},y_{n}) \leq & \frac{1}{1-\Gamma ^{2} \mu _{n}^{2}} \bigl(d^{2} \bigl(x_{n},x^{*} \bigr) - d^{2} \bigl(x_{n+1},x^{*} \bigr) \bigr) \\ \leq & \frac{1}{1-\Gamma ^{2} \mu _{n}^{\prime \prime {2}}} \bigl(d^{2} \bigl(x_{n},x^{*} \bigr) - d^{2} \bigl(x_{n+1},x^{*} \bigr) \bigr). \end{aligned}$$

(17)

Since $\{x_{n}\}$ is Fejér monotone with respect to $VIP(T,K)$, by (i) of Lemma 4, $\lim_{n \to \infty }d(x_{n},x^{*})$ exists. Letting $n \to \infty$ in (19), we obtain

$$ \lim_{n \to \infty }d(x_{n},y_{n})= 0. $$

(18)

From the fact that the sequence $\{x_{n}\}$ is Fejér monotone and by (ii) of Lemma 4, $\{x_{n}\}$ is bounded. Hence, there exists a subsequence $\{x_{n_{k}}\}$ of $\{x_{n}\}$ which converges to a cluster point u of $\{x_{n}\}$. In view of (20), we get $y_{n_{k}} \to u$ as $k \to \infty$. Next, we show that $u \in VIP(T,K)$. From (8), we get

$$ \biggl\langle {\mathrm{P}}_{y_{n_{k}},x_{n_{k}}} Tx_{n_{k}} - \frac{1}{\mu _{n_{k}}} \exp ^{-1}_{y_{n_{k}}}x_{n_{k}}, \exp ^{-1}_{y_{n_{k}}}y \biggr\rangle \geq 0, \quad \forall y \in K, $$

and we further have

$$ \bigl\langle \exp ^{-1}_{y_{n_{k}}}x_{n_{k}} - \mu _{n_{k}} {\mathrm{P}}_{y_{n_{k}},x_{n_{k}}}Tx_{n_{k}}, \exp ^{-1}_{y_{n_{k}}}y \bigr\rangle \leq 0, \quad \forall y \in K. $$

Noting Remarks 2 and 3 in the last inequality gives

$$\begin{aligned} 0 \geq & \bigl\langle \exp ^{-1}_{y_{n_{k}}}x_{n_{k}} - \mu _{n_{k}} {\mathrm{P}}_{y_{n_{k}},x_{n_{k}}}Tx_{n_{k}}, \exp ^{-1}_{y_{n_{k}}}y \bigr\rangle \\ =& \bigl\langle \exp ^{-1}_{y_{n_{k}}}x_{n_{k}} , \exp ^{-1}_{y_{n_{k}}}y \bigr\rangle - \mu _{n_{k}} \bigl\langle { \mathrm{P}}_{y_{n_{k}},x_{n_{k}}}Tx_{n_{k}}, \exp ^{-1}_{y_{n_{k}}}y \bigr\rangle \\ \geq & \bigl\langle \exp ^{-1}_{y_{n_{k}}}x_{n_{k}} , \exp ^{-1}_{y_{n_{k}}}y \bigr\rangle - \mu _{n_{k}} \bigl\langle { \mathrm{P}}_{y_{n_{k}},x_{n_{k}}}Tx_{n_{k}}, \exp ^{-1}_{y_{n_{k}}}x_{n_{k}} \bigr\rangle - \mu _{n_{k}} \bigl\langle {\mathrm{P}}_{y_{n_{k}},x_{n_{k}}}Tx_{n_{k}}, {\mathrm{P}}_{y_{n_{k}},x_{n_{k}}}\exp ^{-1}_{x_{n_{k}}}y \bigr\rangle \\ =& \bigl\langle \exp ^{-1}_{y_{n_{k}}}x_{n_{k}} , \exp ^{-1}_{y_{n_{k}}}y \bigr\rangle - \mu _{n_{k}} \bigl\langle { \mathrm{P}}_{y_{n_{k}},x_{n_{k}}}Tx_{n_{k}}, \exp ^{-1}_{y_{n_{k}}}x_{n_{k}} \bigr\rangle {} - \mu _{n_{k}} \bigl\langle Tx_{n_{k}}, \exp ^{-1}_{x_{n_{k}}}y \bigr\rangle . \end{aligned}$$

(19)

It follows from (21) that

$$\begin{aligned} \bigl\langle Tx_{n_{k}}, \exp ^{-1}_{x_{n_{k}}}y \bigr\rangle \geq \frac{1}{\mu _{n_{k}}} \bigl\langle \exp ^{-1}_{y_{n_{k}}}x_{n_{k}} , \exp ^{-1}_{y_{n_{k}}}y \bigr\rangle + \bigl\langle Tx_{n_{k}}, \exp ^{-1}_{x_{n_{k}}}y_{n_{k}} \bigr\rangle . \end{aligned}$$

Since $\mu _{n} \in [\mu {'}, \mu {''} ]$, and hence

$$\begin{aligned} \bigl\langle Tx_{n_{k}}, \exp ^{-1}_{x_{n_{k}}}y \bigr\rangle \geq \frac{1}{\mu ^{\prime }} \bigl\langle \exp ^{-1}_{y_{n_{k}}}x_{n_{k}} , \exp ^{-1}_{y_{n_{k}}}y \bigr\rangle + \bigl\langle Tx_{n_{k}}, \exp ^{-1}_{x_{n_{k}}}y_{n_{k}} \bigr\rangle . \end{aligned}$$

Utilizing Lemma 3 and letting $k \to \infty$, we get

$$ \bigl\langle Tu, \exp ^{-1}_{u} y \bigr\rangle \geq 0, \quad \forall y \in K, $$

which implies that $u \in VIP(T,K)$. By (iii) of Lemma 4, the sequence $\{x_{n}\}$ generated by Algorithm 1 converges to a solution of the problem (2). This completes the proof. □

The step sizes in Algorithm 1 rely upon the Lipschitz constants. Unfortunately, these constants are often unknown or difficult to approximate. Next, we present Tseng’s extragradient method when the Lipschitz constant is unknown. Then the algorithm reads as Algorithm 2.

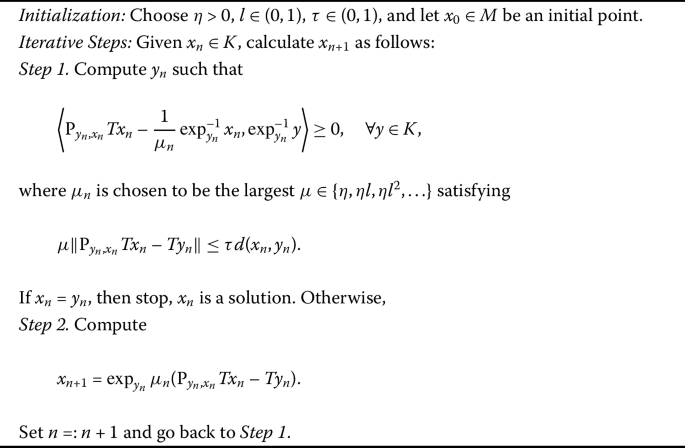

Algorithm 2

Tseng’s extragradient method with line search

To prove the convergence of Algorithm 2, we need the following lemmas.

Lemma 6

([23])

The Armijo-like search rule (22) is well defined and

$$ \min \biggl\{ \eta , \frac{\tau l}{\Gamma } \biggr\} \leq \mu _{n} \leq \eta . $$

Lemma 7

Let $\{x_{n}\}$ be a sequence generated by Algorithm 2. Then

$$ d^{2}(x_{n+1},x) \leq d^{2}(x_{n},x) - \bigl(1-\tau ^{2} \bigr)d^{2}(x_{n},y_{n}), \quad \forall x \in VIP(T,K). $$

(20)

Proof

Let $x \in VIP(T,K)$. Then, according to the proof of Lemma 5, we can obtain the following inequality:

$$ d^{2}(x_{n+1},x) \leq d^{2}(x_{n},x) -d^{2}(x_{n},y_{n}) + \mu _{n}^{2} \Vert {\mathrm{P}}_{y_{n},x_{n}}Tx_{n} - Ty_{n} \Vert ^{2}. $$

Using (22), one obtains

$$\begin{aligned} d^{2}(x_{n+1},x) \leq & d^{2}(x_{n},x) -d^{2}(x_{n},y_{n}) + \tau ^{2} d^{2}(x_{n},y_{n}) \\ =& d^{2}(x_{n},x) - \bigl(1-\tau ^{2} \bigr)d^{2}(x_{n},y_{n}). \end{aligned}$$

(21)

Therefore, the proof is completed. □

Based on the above two lemmas, we have the following result on the convergence of Algorithm 2.

Theorem 2

Suppose that assumptions (H1)–(H2) hold. Then the sequence $\{x_{n}\}$ generated by Algorithm 2 converges to a solution of the variational inequality problem (2).

Proof

Let $x^{*} \in VIP(T,K)$. Since $\tau \in (0,1)$, by (23), we get

$$\begin{aligned} d^{2} \bigl(x_{n+1},x^{*} \bigr) \leq & d^{2} \bigl(x_{n},x^{*} \bigr) - \bigl(1-\tau ^{2} \bigr)d^{2}(x_{n},y_{n}) \\ \leq & d^{2} \bigl(x_{n},x^{*} \bigr). \end{aligned}$$

(22)

Therefore, $\{x_{n}\}$ is Fejér monotone with respect to $VIP(T,K)$.

Next, we show that $\lim_{n \to \infty }d(x_{n},y_{n}) = 0$. In view of (25) and $\tau \in (0,1)$, we have

$$ \bigl(1-\tau ^{2} \bigr)d^{2}(x_{n},y_{n}) \leq d^{2} \bigl(x_{n},x^{*} \bigr) - d^{2} \bigl(x_{n+1},x^{*} \bigr), $$

and we further have

$$ d^{2}(x_{n},y_{n}) \leq \frac{1}{1-\tau ^{2}} \bigl(d^{2} \bigl(x_{n},x^{*} \bigr) - d^{2} \bigl(x_{n+1},x^{*} \bigr) \bigr). $$

(23)

Since $\{x_{n}\}$ is Fejér monotone with respect to $VIP(T,K)$, using Lemma 4, $\lim_{n \to \infty }d(x_{n},x^{*})$ exists. By letting $n \to \infty$ in (26), we obtain

$$ \lim_{n \to \infty }d(x_{n},y_{n})= 0. $$

Since the sequence $\{x_{n}\}$ is Fejér monotone, by (ii) of Lemma 4, $\{x_{n}\}$ is bounded. Hence, there exists a subsequence $\{x_{n_{k}}\}$ of $\{x_{n}\}$ which converges to a cluster point u of $\{x_{n}\}$. Now, using an argument similar to the proof of the fact that $u \in VIP(T,K)$ in Theorem 1, we have $u \in VIP(T,K)$, as required. By (iii) of Lemma 4, the sequence $\{x_{n}\}$ generated by Algorithm 2 converges to a solution of the problem (2). Therefore, the proof is completed. □

Next, we present a modified Tseng’s extragradient method to solve the variational inequality (2). The step sizes in this algorithm are obtained by simple updating, as opposed to utilizing the line search, which brings about a lower computational cost. More precisely, the algorithm is designed as Algorithm 3.

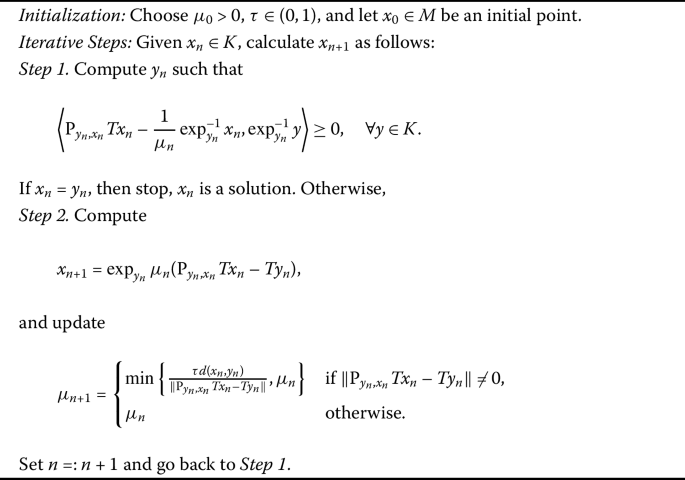

Algorithm 3

Modified Tseng’s extragradient method

To prove the convergence of Algorithm 3, we need the following results.

Lemma 8

([23])

The sequence $\{\mu _{n}\}$ generated by Algorithm 3 is monotonically decreasing with lower bound $\min \left \{ \frac{\tau }{\Gamma },\mu _{0} \right \}$.

Remark 4

([23])

By Lemma 8, the limit of $\{\mu _{n}\}$ exists. We denote $\mu =\lim_{n \to \infty }\mu _{n}$. Then $\mu >0$ and $\lim_{n \to \infty } \left(\frac{\mu _{n}}{\mu _{n+1}} \right ) =1$.

Lemma 9

Let $\{x_{n}\}$ be a sequence generated by Algorithm 3. Then

$$ d^{2}(x_{n+1},x) \leq d^{2}(x_{n},x) - \biggl(1- \mu ^{2}_{n} \frac{\tau ^{2}}{\mu ^{2}_{n+1}} \biggr)d^{2}(x_{n},y_{n}), \quad \forall x \in VIP(T,K). $$

(24)

Proof

It is easy to see that, by the definition of $\{\mu _{n}\}$, we have

$$ \Vert P_{y_{n},x_{n}}Tx_{n} - Ty_{n} \Vert \leq \frac{\tau }{\mu _{n+1}}d(x_{n},y_{n}), \quad \forall n \in \mathbb{N}. $$

(25)

Indeed, if $Tx_{n} = Ty_{n}$ then the inequality (28) holds. Otherwise, we have

$$ \mu _{n+1} = \min \biggl\{ \frac{\tau d(x_{n},y_{n})}{ \Vert {\mathrm{P}}_{y_{n},x_{n}}Tx_{n}- Ty_{n} \Vert }, \mu _{n} \biggr\} \leq \frac{\tau d(x_{n},y_{n})}{ \Vert {\mathrm{P}}_{y_{n},x_{n}}Tx_{n}- Ty_{n} \Vert }. $$

This implies that

$$ \Vert {\mathrm{P}}_{y_{n},x_{n}}Tx_{n}- Ty_{n} \Vert \leq \frac{\tau }{\mu _{n+1}}d(x_{n},y_{n}). $$

Therefore, the inequality (28) holds when $Tx_{n} = Ty_{n}$ and $Tx_{n} \neq Ty_{n}$.

Letting $x \in VIP(T,K)$, similarly as in the proof of Lemma 5 we can deduce the following inequality:

$$ d^{2}(x_{n+1},x) \leq d^{2}(x_{n},x) -d^{2}(x_{n},y_{n}) + \mu _{n}^{2} \Vert {\mathrm{P}}_{y_{n},x_{n}}Tx_{n} - Ty_{n} \Vert ^{2}. $$

Substituting (31) into the above inequality, we get

$$\begin{aligned} d^{2}(x_{n+1},x) \leq & d^{2}(x_{n},x) -d^{2}(x_{n},y_{n}) + \mu ^{2}_{n} \frac{\tau ^{2}}{\mu _{n+1}^{2}}d^{2}(x_{n},y_{n}) \\ =& d^{2}(x_{n},x) - \biggl(1- \mu ^{2}_{n} \frac{\tau ^{2}}{\mu ^{2}_{n+1}} \biggr)d^{2}(x_{n},y_{n}). \end{aligned}$$

Therefore, the proof is completed. □

From the above results, now we ready to prove the convergence of Algorithm 3.

Theorem 3

Suppose that assumptions (H1)–(H2) hold. Then the sequence $\{x_{n}\}$ generated by Algorithm 3 converges to a solution of the variational inequality problem (2).

Proof

Let $x^{*} \in VIP(T,K)$. Then by (27) we have

$$\begin{aligned} d^{2} \bigl(x_{n+1},x^{*} \bigr) \leq d^{2} \bigl(x_{n},x^{*} \bigr) - \biggl(1- \mu ^{2}_{n} \frac{\tau ^{2}}{\mu ^{2}_{n+1}} \biggr)d^{2}(x_{n},y_{n}). \end{aligned}$$

(26)

From Remark 4, we have

$$ \lim_{n \to \infty } \biggl(1 - \mu _{n}^{2} \frac{\tau ^{2}}{\mu _{n+1}^{2}} \biggr) = 1 - \tau ^{2} >0, $$

(27)

that is, for some $N \geq 0$, for all $n \geq N$, such that $1 - \mu _{n}^{2} \frac{\tau ^{2}}{\mu _{n+1}^{2}} >0$. It suggests that $d(x_{n+1},x^{*}) \leq d(x_{n},x^{*})$ for all $n \geq N$. Therefore, $\{x_{n}\}$ is Fejér monotone with respect to $VIP(T,K)$.

Next, we show that $\lim_{n \to \infty }d(x_{n},y_{n}) = 0$. From (32), we have

$$ \biggl(1 - \mu _{n}^{2} \frac{\tau ^{2}}{\mu _{n+1}^{2}} \biggr)d^{2}(x_{n},y_{n}) \leq d^{2} \bigl(x_{n},x^{*} \bigr) - d^{2} \bigl(x_{n+1},x^{*} \bigr), $$

and we further have

$$ d^{2}(x_{n},y_{n}) \leq \frac{1}{1 - \mu _{n}^{2} \frac{\tau ^{2}}{\mu _{n+1}^{2}}} \bigl(d^{2} \bigl(x_{n},x^{*} \bigr) - d^{2} \bigl(x_{n+1},x^{*} \bigr) \bigr). $$

(28)

Since $\{x_{n}\}$ is Fejér monotone with respect to $VIP(T,K)$, using Lemma 4, $\lim_{n \to \infty }d(x_{n},x^{*})$ exists. By letting $n \to \infty$ in (26), we obtain

$$ \lim_{n \to \infty }d(x_{n},y_{n})= 0. $$

Since the sequence $\{x_{n}\}$ is Fejér monotone, by (ii) of Lemma 4, $\{x_{n}\}$ is bounded. Hence, there exists a subsequence $\{x_{n_{k}}\}$ of $\{x_{n}\}$ which converges to a cluster point u of $\{x_{n}\}$. Now, using an argument similar to the proof of the fact that $u \in VIP(T,K)$ in Theorem 1, we have $u \in VIP(T,K)$, as required. By (iii) of Lemma 4, the sequence $\{x_{n}\}$ generated by Algorithm 3 converges to a solution of the problem (2). Therefore, the proof is completed. □

4 Numerical experiments

In this section, we present three numerical examples in the framework of Hadamard manifolds to represent convergence of Algorithms 1, 2, and 3. All programs are written in Matlab R2016b and computed on PC Intel(R) Core(TM) i7 @1.80 GHz, with 8.00 GB RAM.

Let $M := \mathbb{R}^{++} = \{x \in \mathbb{R} : x >0\}$ and $(\mathbb{R}^{++},\langle \cdot , \cdot \rangle )$ be the Riemannian manifold, and $\langle \cdot , \cdot \rangle$ the Riemannian metric defined by

$$ \langle u, v \rangle := \frac{1}{x^{2}}uv, $$

for all vectors $u,v \in T_{x}M$. The tangent space at $x \in M$ is denoted by $T_{x}M$. For $x \in M$, the tangent space $T_{x}M$ at x equals $\mathbb{R}$. In addition, the parallel transport is the identity mapping. The Riemannian distance $d: M \times M \to \mathbb{R}^{+}$ is defined by

$$ d(x,y) : = \biggl\vert \ln \frac{x}{y} \biggr\vert , \quad \forall x, y \in M; $$

see, for instance, [35]. Then, $(\mathbb{R}^{++},\langle \cdot , \cdot \rangle )$ is an Hadamard manifold, and the unique geodesic $\omega : \mathbb{R} \to M$ starting from $\omega (0) = x$ with $v = \omega {'}(0) \in T_{x}M$ is defined by $\omega (t) := x e^{(vt/x)}$. Therefore,

$$ \exp _{x}tv = x e^{(vt/x)}. $$

The inverse exponential map is defined by

$$ \exp ^{-1}_{x}y =\omega {'}(0) = x \ln \frac{y}{x}. $$

Example 1

Let $K = [1,+\infty )$ be a geodesic convex subset of $\mathbb{R}^{++}$, and $T: K \to \mathbb{R}$ be a single-valued vector field defined by

$$ Tx := \frac{x}{2}\ln x, \quad \forall x \in K. $$

Let $x,y \in K$ and $\langle Tx, \exp ^{-1}_{x}y \rangle \geq 0$, then we have

$$\begin{aligned} \bigl\langle Ty, \exp ^{-1}_{y}x \bigr\rangle \leq & \bigl\langle Ty, \exp ^{-1}_{y}x \bigr\rangle + \bigl\langle Tx, \exp ^{-1}_{x}y \bigr\rangle \\ =& \frac{1}{y^{2}} \biggl(\frac{y}{2} \ln y \biggr) \biggl(y \ln \frac{x}{y} \biggr) + \frac{1}{x^{2}} \biggl(\frac{x}{2} \ln x \biggr) \biggl(x \ln \frac{y}{x} \biggr) \\ =& \frac{\ln y}{2} \ln \frac{x}{y} + \frac{\ln x}{2} \ln \frac{y}{x} \\ =& -\frac{1}{2} \ln ^{2} \frac{x}{y} \\ \leq & 0. \end{aligned}$$

Hence, T is pseudomonotone. Next, we show that T is Lipschitz continuous. Given ${x,y \in K}$,

$$\begin{aligned} \Vert {\mathrm{P}}_{x,y}Tx - Ty \Vert ^{2} =& \biggl\Vert \frac{x}{2}\ln x - \frac{y}{2}\ln y \biggr\Vert ^{2} \\ =& \biggl\Vert \frac{x}{2}\ln x \biggr\Vert ^{2} -2 \biggl\Vert \frac{x}{2} \ln x \biggr\Vert \biggl\Vert \frac{y}{2}\ln y \biggr\Vert + \biggl\Vert \frac{y}{2}\ln y \biggr\Vert ^{2} \\ =& \frac{1}{4} \ln ^{2} x - \frac{2}{4} \ln x \ln y + \frac{1}{4} \ln ^{2} y \\ =& \frac{1}{4} \ln ^{2} \frac{x}{y} \\ =& \frac{1}{4}d^{2}(x,y), \end{aligned}$$

and thus, T is $1/2$-Lipschitz continuous. So, T is pseudomonotone and $1/2$-Lipschitz continuous. Clearly, the variational inequality has a unique solution. Hence,

$$\begin{aligned}& \begin{aligned} \bigl\langle Tx^{*}, \exp ^{-1}_{x^{*}}y \bigr\rangle ={}& \frac{1}{x^{*^{2}}} \biggl(\frac{x^{*}}{2} \ln x^{*} \biggr) \biggl(x^{*} \ln \frac{x^{*}}{y} \biggr) \\ ={}& \frac{\ln x^{*}}{2} \ln \frac{x^{*}}{y} \geq 0, \quad y \in K \end{aligned} \\& \quad \Leftrightarrow \quad x^{*} = 1. \end{aligned}$$

We deduce that $VIP(T,K) = \{1\}$. Choose $\eta = l = \tau =0.5$ and let $\mu _{n} = \frac{1}{2} - \frac{1}{n+3}$. With the initial point $x_{0} = 2$, the numerical results of Algorithms 1, 2, and 3 are shown in Table 1 and Fig. 1.

Figure 1

Iterative process of Example 1

Table 1 The numerical results for Example 1

Example 2

Let $K = [1,2]$ be a geodesic convex subset of $\mathbb{R}^{++}$, and $T: K \to \mathbb{R}$ be a single-valued vector field defined by

$$ Tx := -x \ln \frac{2}{x}, \quad \forall x \in K. $$

Let $x,y \in K$ and $\langle Tx, \exp ^{-1}_{x}y \rangle \geq 0$. Then we have

$$\begin{aligned} \bigl\langle Ty, \exp ^{-1}_{y}x \bigr\rangle \leq & \bigl\langle Ty, \exp ^{-1}_{y}x \bigr\rangle + \bigl\langle Tx, \exp ^{-1}_{x}y \bigr\rangle \\ =& \frac{1}{y^{2}} \biggl(- y \ln \frac{2}{y} \biggr) \biggl(y \ln \frac{x}{y} \biggr) + \frac{1}{x^{2}} \biggl(-x \ln \frac{2}{x} \biggr) \biggl(x \ln \frac{y}{x} \biggr) \\ =& \biggl(- \ln \frac{2}{y} \biggr) \biggl(\ln \frac{x}{y} \biggr) + \biggl(- \ln \frac{2}{x} \biggr) \biggl( \ln \frac{y}{x} \biggr) \\ =& -\ln 2 \ln \frac{x}{y} + \ln y \ln \frac{x}{y} - \ln 2 \ln \frac{y}{x} + \ln x \ln \frac{y}{x} \\ =& -\ln 2 \ln 1 + \ln y \ln \frac{x}{y} + \ln x \ln \frac{y}{x} \\ =& \bigl( \ln x \ln y - \ln ^{2} y + \ln x \ln y - \ln ^{2} x \bigr) \\ =& - \ln ^{2} \frac{x}{y} \\ \leq & 0. \end{aligned}$$

Hence, T is pseudomonotone, and it is easy to see that T is 1-Lipschitz continuous. Thereby, T is pseudomonotone and 1-Lipschitz continuous. Clearly, the variational inequality has a unique solution. Hence,

$$\begin{aligned}& \begin{aligned} \bigl\langle Tx^{*}, \exp ^{-1}_{x^{*}}y \bigr\rangle ={}& \frac{1}{x^{*^{2}}} \biggl( - x^{*} \ln \frac{2}{x^{*}} \biggr) \biggl(x^{*} \ln \frac{x^{*}}{y} \biggr) \\ ={}& - \ln \frac{2}{x^{*}} \ln \frac{x^{*}}{y} \geq 0, \quad y \in K \end{aligned} \\& \quad \Leftrightarrow \quad x^{*} = 2. \end{aligned}$$

We deduce that $VIP(T,K) = \{2\}$. Choose $\eta = l = \tau =0.5$ and let $\mu _{n} = \frac{1}{2} - \frac{1}{n+3}$. With the initial point $x_{0} = 1$, the numerical results of Algorithms 1, 2, and 3 are shown in Table 2 and Fig. 2.

Figure 2

Iterative process of Example 2

Table 2 The numerical results for Example 2

Example 3

Following [38], let $\mathbb{R}^{++}_{n}$ is the product space of $\mathbb{R}^{++}$, that is, $\mathbb{R}^{++}_{n} = \{x = (x_{1},x_{2},\ldots ,x_{n})\in \mathbb{R}^{n} : x_{i} >0, \ i = 1,\ldots ,n\}$. Let $M = (\mathbb{R}^{++}_{n}, \langle \cdot , \cdot \rangle )$ with the metric defined by $\langle u, v \rangle := u^{T}V(x)v$, for $x \in \mathbb{R}_{n}^{++}$ and $u,v \in T_{x}\mathbb{R}_{n}^{++}$ where $V(x)$ is a diagonal metric defined by $V(x) = \operatorname{diag} (x_{1}^{-2},x_{2}^{-2},\ldots ,x_{n}^{-2} )$. In addition, the Riemannian distance is defined by $d(x,y) := \sqrt{\sum_{i=1}^{n}\ln ^{2}\frac{x_{i}}{y_{i}}}$, for all $x, y \in \mathbb{R}_{n}^{++}$.

Let $K = \{x = (x_{1},x_{2},\ldots ,x_{n}) : 1 \leq x_{i} \leq 10, i = 1,2,\ldots ,n\}$ be a closed, geodesic convex subset of $\mathbb{R}_{n}^{++}$ and $T: K \to \mathbb{R}^{n}$ be a single-valued vector field defined by

$$ (Tx)_{i} := x_{i}\ln x_{i}, \quad i = 1,2, \ldots , n. $$

This vector filed is a monotone and 1-Lipschitz continuous on $\mathbb{R}_{n}^{++}$, see [39, Example 1]. We choose $\eta = l = \tau =0.5$ and let $\mu _{n} = \frac{1}{2} - \frac{1}{n+3}$. The starting points are randomly generated by the MATLAB built-in function rand:

$$ x_{0} = 1+{\mathtt{rand}}(n,1). $$

The terminal criterion is $d(x_{n},y_{n}) \leq \epsilon$. For the numerical experiment, we take $\epsilon = 10^{-5}$, and $n = 50, 100, 500$. The number of iterations (Iteration) and the computing time (Time) measured in seconds are described in Table 3.

Table 3 The numerical results of Algorithms 1, 2, and 3 for the number of iterations (Iteration) and the computing time (Time) measured in seconds with $n = 20, 50, 100, 200$

The aforementioned results have delineated that Algorithm 1 is much quicker than Algorithms 2 and 3. In particular, if the Lipschitz-type constants are known, Algorithm 1 works well. Regardless of whether the Lipschitz constants are needed or not, we observe that Algorithm 2 is much quicker than Algorithm 3. However, Algorithm 3 has a lower computational cost than Algorithm 2.

5 Conclusions

In this paper, we focus on the variational inequality problem in Hadamard manifolds. Three Tseng’s-type methods are purposed to solve pseudomonotone variational inequality problems. The convergence of the proposed algorithms is established under standard conditions. Moreover, numerical experiments are supplied to illustrate the effectiveness of our algorithms.
